Junttan+Hyundai
Dynamic Compaction
Rapid Dynamic (Impact) Compaction Unit

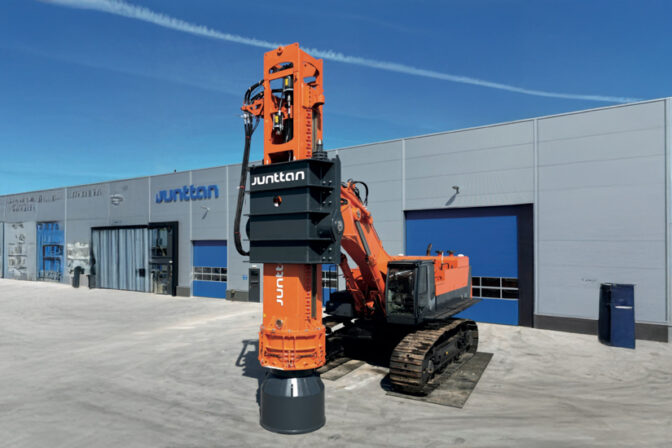

JUNTTAN + HYUNDAI RIC 9S – 9 TON
HYUNDAI Crawler Excavator Model HX520, 335 HP. We are also the authorized distributors of Hyundai and thus the entire service operations are top notch professional.
- TYPE HHK9S + HX520
- MAX. ENERGY 132 kNm
Need Reliable Crawler Cranes for Your Next Job?
We’re just a call away, ready to assist whenever you need us. O.Rental will answer your questions quickly and clearly.Get in Touch to Rent
- World Leader in manufacturing – Junttan (made in Finland) Rapid Impact Compaction (RIC) solution. Purpose built hammer with long proven track record.
- Excavator integrated hydraulic hammer solution is a fast and efficient method for soil improvement projects.
- Unparalleled efficiency and performance in soil compaction with unprecedented speed and accuracy – ensuring you stay ahead of schedule and under budget.
- Junttan’s innovative design is centered around its unique, high-frequency impact system. Less noise pollution due to Junttan design standards (noise suppression units, etc).
- Designed for adaptability, this impact compaction solution can be used on a wide range of soil types and conditions, making it a versatile asset to your construction arsenal. Whether you’re working on residential developments, commercial infrastructure, or heavy-duty industrial projects, Junttan is able to deliver every time.
- By streamlining the compaction process, Junttan Rapid Impact Compaction significantly lowers fuel consumption and CO2 emissions, making it an eco-friendly choice for your project.
| TYPE HHK 9S – Technical Specifications | |
|---|---|
| Max. Energy | 132 kNm |
| Energy Measuring Device | Included |
| Min. Stroke | 500 mm |
| Max. Stroke | 1500 mm |
| Qty of Cylinders | 1 |
| Blow Rate | 30–100 |
| Ram Block | 600 × 600 mm |
| Oil Flow | 280 l/min |
| Total Weight | 16,000 kg |
| Junttan Drivecap Housing (Diameter) | 880 mm |
| Hydraulic (Un)locking Drivecap Housing | Included |
| Junttan Drivecap (Diameter) | 878 mm |
| Sound Silencer | Available |
| Compaction Depth Influence | Up to 5 m |
| Compaction Foot(s) | 1500 mm |
| Compatible Excavator | Hyundai HX520, 335 HP, 50/55 tons |
| Junttan Depth Registration | Available |
